A CLASS
STRONG ROOM DOOR

Home STRONGROOM DOORS A CLASS STRONG ROOM DOOR

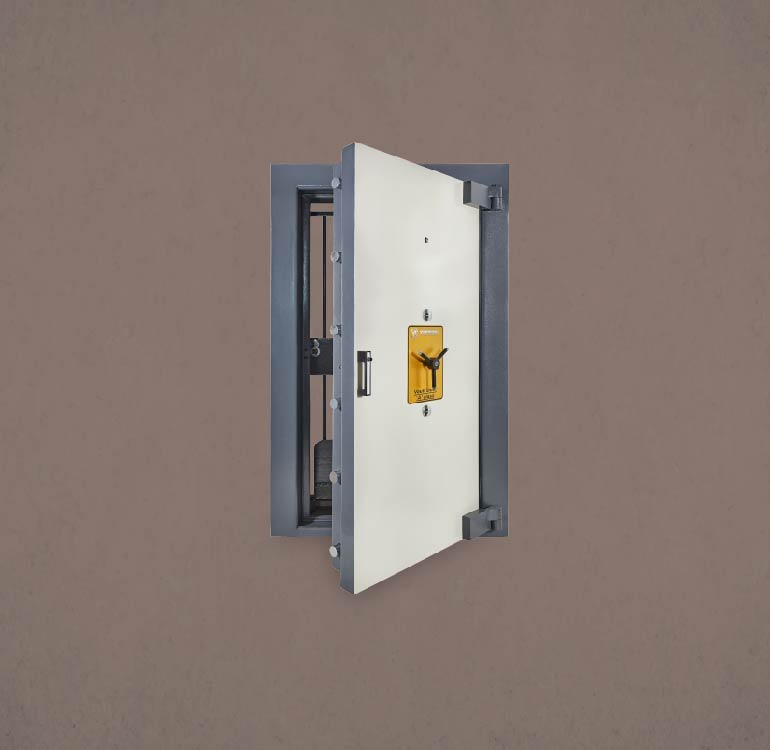

A CLASS STRONG ROOM DOOR

Guardwel Strong Room Door, also known as a Vault door, is an exceptionally robust and secure door designed to provide maximum protection and security for valuable assets, documents, or sensitive materials stored within a strong room or vault. Guardwel’s Standard Strong Room Doors are specially designed to provide unparalleled security to the banking and financial industry against ever-evolving burglary techniques.

Our doors are made of sturdy steel plates and barrier materials that are resistant to oxyacetylene torches and tools, making it difficult to penetrate the door even with multiple modes of attack and the latest tools. The unique combination of different barrier layers ensures the highest level of security for the strong rooms of banks across India.

DESCRIPTION

  • Guardwel offers enhanced protection against burglary with its in-house torch and tool resistant barrier material.
  • The vault features a hinged foot-bridge that can be folded into the vestibule for easy passage of trolleys.
  • Default provision is made for retro fitting of Time Lock.
  • The strong room doors are equipped with two Guardwel HS dual control key locks, each with non-magnetic duplicate keys.
  • Lock options include Biometric Lock, Electronic Lock, Time Lock, and Mechanical Combination locks.
  • Guardwel SRDs are available in regular Right hung or special Left hung models.
  • Accessories for the strong room are also available, such as Air Ventilators, Inspection Trolley, and Mobile Ladder.

Technical Specification

SPECIFICATIONS
REF
A CLASS (mm)
Dimension over Door Frame A 1328 X 2255
Clear opening, door open at 180° B 906 X 1995
Clear opening, door open at 90° C 775
Wall opening D 1100 X 2159
Projection of door open at 180° E 305
Projection of door open at 90° F 1115
Overall width of door & frame when door is open at 180° G 2313
Min. Overall width of door & frame to give max clear opening H 1565
Width over Grill Gate frame J 1006
Projection of Grill Gate open at 180° K 109
Projection of Grill Gate open at 90° L 1039
Overall width of grill gate and frame when gate is open at 180° M 2069
Centre line of door opening to the edge of the frame N 664
  • License No. - 7956708
  • Standard - 11188
  • A Class - ( TRTL 60)
